By default, rotating torque transducers with slip rings sent an analog, unamplified strain gauge bridge output signal in mV/V, which is transmitted via high-quality, low-wear slip rings. Slip ring sensors are generally used for individual, random inspections or torque measurements, performed at low speed. An integrated speed/angle measurement is standardized in most torque sensors with slip ring transmission. Typical applications for this type of sensor are for example screw driving technologies, test bench applications such as testing of engines, gears, bearings and seals ... .

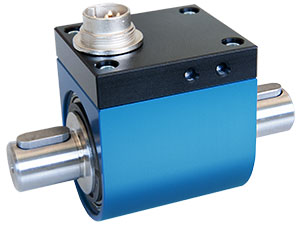

| Type: | DR-2 |
|---|---|
| Measuring Range: | 1..500 N·m |
| Accuracy Class: | 0.1 |
| Mechanical Connection: | Cylindrical Shaft with Keyway |
| Speed/Angle Measurement: | - |
| Suitable Coupling (PDF Datasheet): | 1..20 N·m 50..500 N·m |
| Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 6-pin female cable connector and free soldered ends |
| PDF Datasheet: | 080863b_DR-2_en.pdf |
| PDF Operation Manual: | Download |
| CAD Files: | DXF IGS; STP |
